brt | PhysioGo 701i

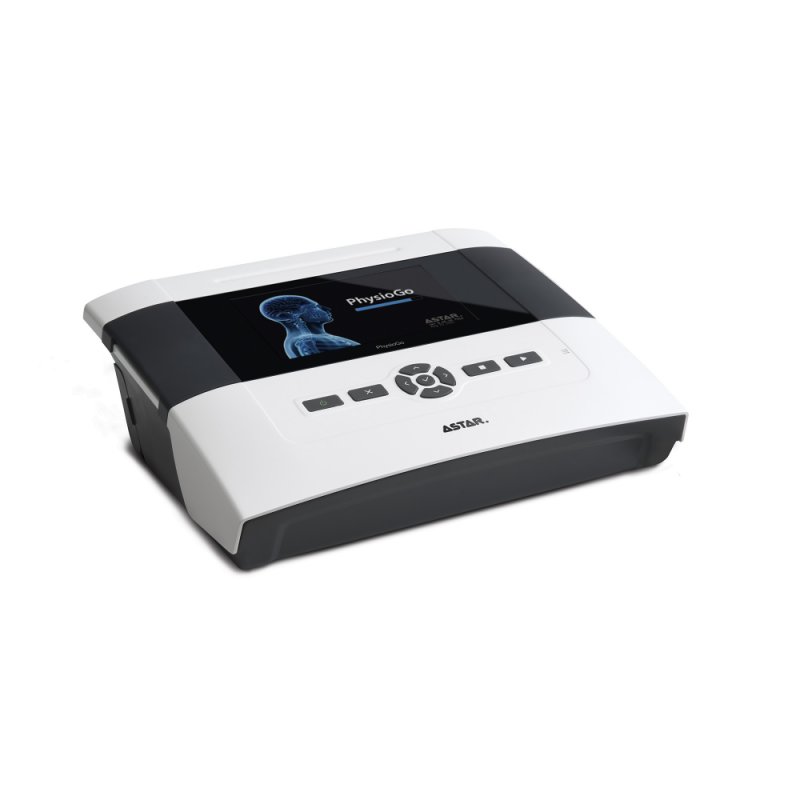

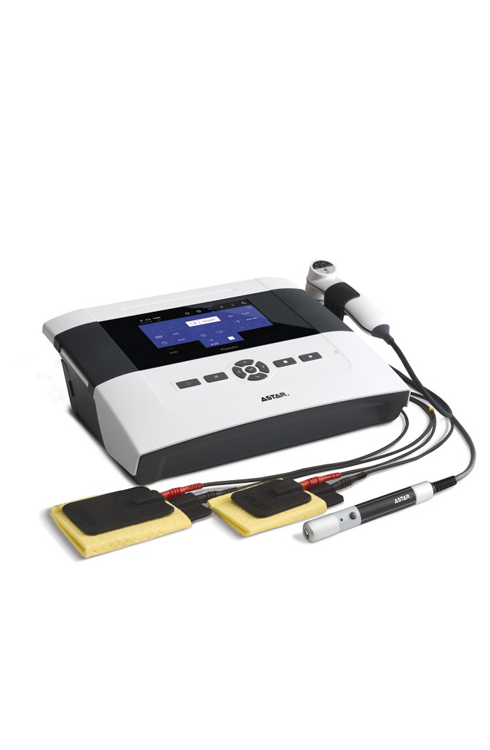

PhysioGo 701I device for electrotherapy, ultrasound therapy, combined therapy, laser therapy and magnetotherapy

This is a 3-channel device that provides enormous therapeutic possibilities. Depending on the equipment, it allows for performing up to 5 available therapies: electrotherapy, ultrasound therapy, combined therapy, laser therapy and magnetotherapy. The possibilities of this model are evidenced by the extensive database of 420 built-in programs, 38 electrotherapy sequences and 400 own programs. The categorization of such a large number of built-in programs according to medical nomenclature significantly affects the ergonomics of use. The built-in battery, which allows for operation up to 8 h and a low weight of approx. 6 kg make the device fully mobile.

Functional features:

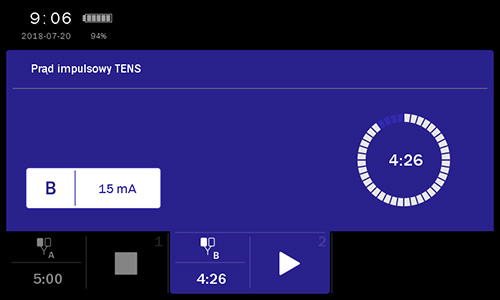

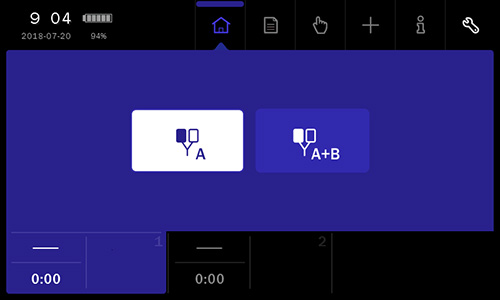

7" color display with touch panel
Three independent treatment channels
Adjusting the intensity in the patient circuit simultaneously for both channels or separately
Test Electrode
Manual mode
Diseases selected by name or field
Database of built-in treatment programs
Database of built-in treatment sequences

User program database
User Sequence Database
Favorite programs
Ability to edit program names and user sequences

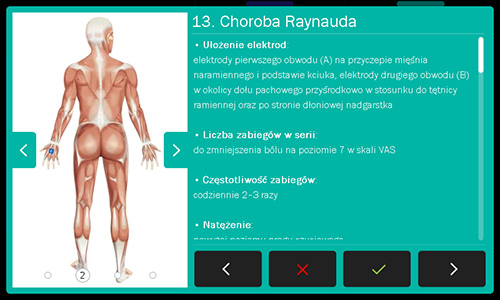

Encyclopedia with description of the treatment methodology
Statistics of performed procedures
Adjusting the volume of the buzzer
Battery

Technical Parameters

controller - max. current intensity in patient circuit (CC mode)	galvanic: 40 mA diadynamic, pulsed: 60 mA interferential, Kotz, unipolar undulating: 60 mA TENS: 140 mA tonolysis: 100 mA microcurrents: 1000 μA
frequency in pulse mode	16Hz, 48Hz, 100Hz
filling in pulse mode	5 - 75%, 5% step
Laser Device Class	3B
Treatment Clock - Laser Therapy	1 sec - 100 minutes
Working Frequency	2-120Hz
maximum intensity of ultrasonic wave	2/ 3 W/ cm2
frequency in pulse mode	16Hz, 48Hz, 100Hz
filling in pulse mode	5 - 75%, 5% step
laser device class	3B
treatment clock - laser therapy	1 sec - 100 minutes
treatment timer - ultrasound	30 sec – 30 minutes
Dimensions	34x28x11-16
Mass	6kg
Battery Type	Li-lon
Battery Capacity	2250mAh
Power Supply, Power Consumption	230V, 50/60Hz, 75W, 90VA

Standard equipment

Power cord
Patient cables (2 pcs.)
Electrotherapy electrodes - 6 x 6 cm (4 pcs.); 7.5 x 9 cm (2 pcs.)
Viscose covers for electrodes - 6 x 6 cm (8 pcs.); 7.5 x 9 cm (4 pcs.)
Velcro straps - 40 x 9 cm (2 pcs); 100 x 9 cm (2 pcs) or 40 x 10 cm (2 pcs); 100 x 10 cm (2 pcs.)
Ultrasound gel (500 g)
DOOR door lock plug
Laser therapy warning labels
Capacitive stylus for LCD screen
LCD screen cloth
Masking covers with cut-out (2 pcs.)
Full masking covers (2 pcs.)
Battery
Spare fuses WTA-T 1 A / 250 V (2 pcs.)
User manual
Post-inspection report on safety tests
Technical passport
Warranty Card

Optional equipment

Self-adhesive electrodes - 5 x 5 cm, 5 x 10 cm

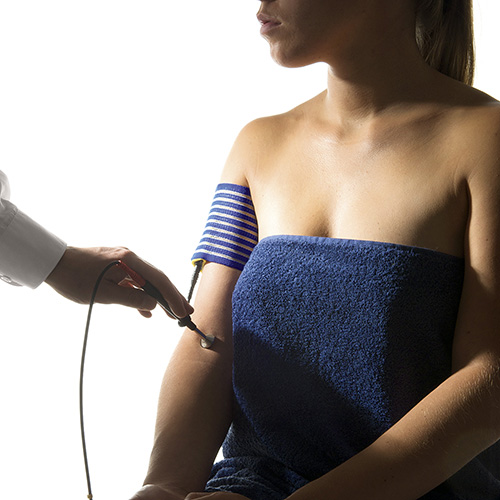

Point electrodes with adapter - 6 mm, 10 mm, 15 mm, 20 mm

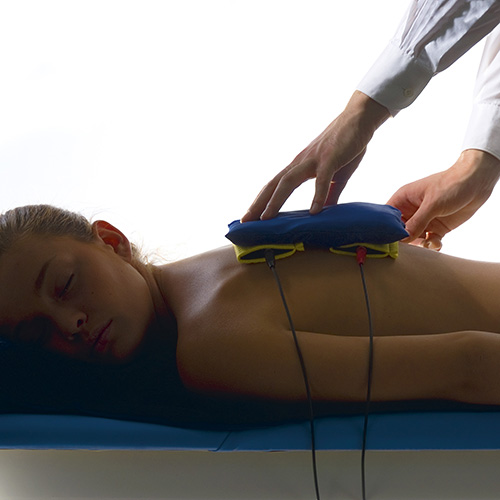

Sand bag - 21 x 14 cm, 21 x 28 cm

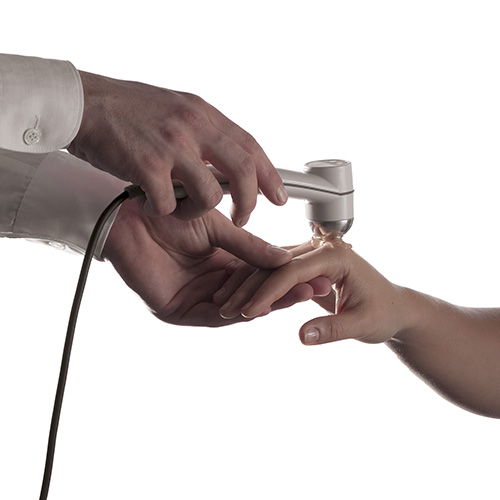

1/3.5 MHz, 1 cm² head with holder
1/3.5 MHz, 4 cm² head with holder (1 pc.)
R 660 nm/80 mW point probe with holder
IR point probe 400 mW/808 nm (1 pc.)

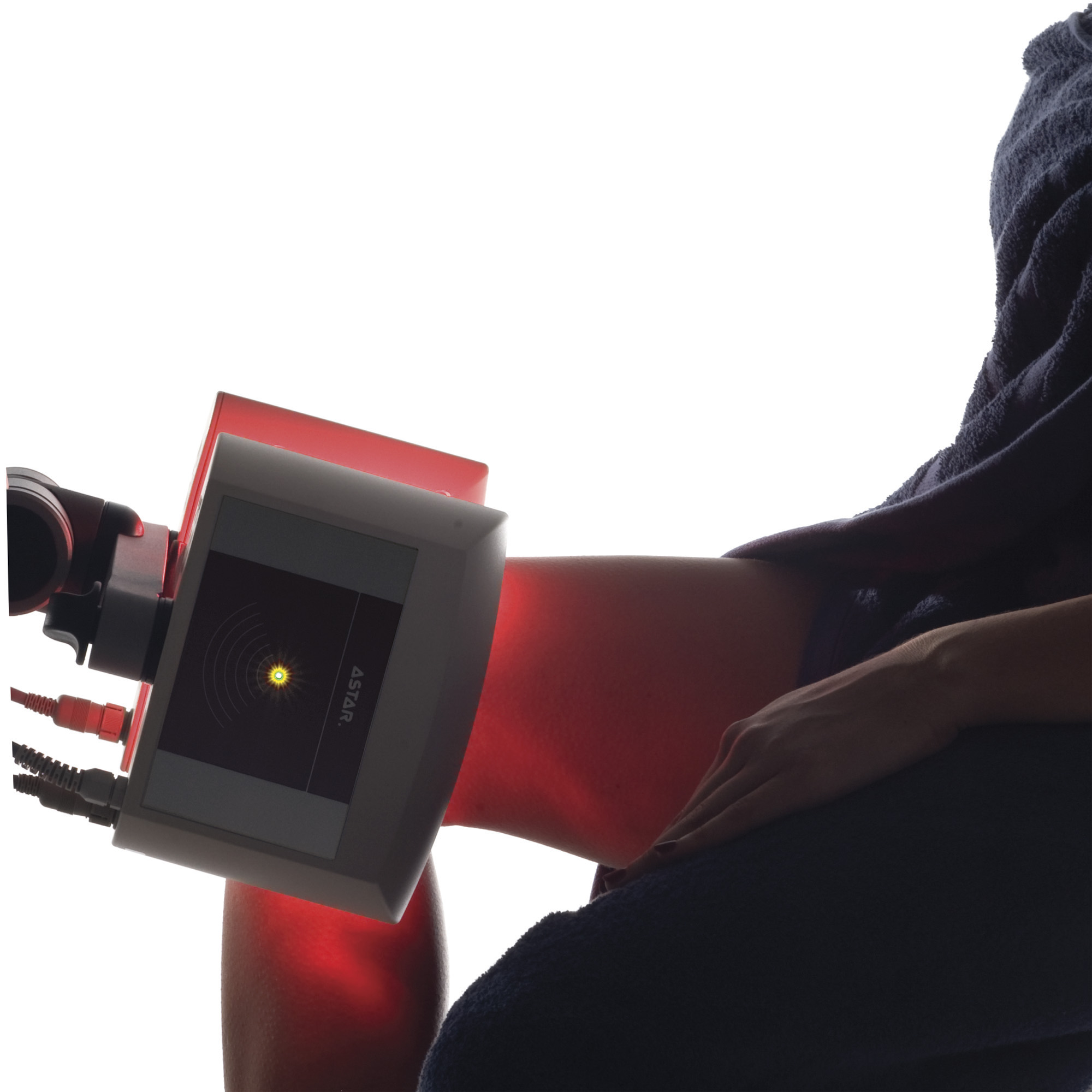

R+IR 100 mW + 450 mW scanning applicator with stand

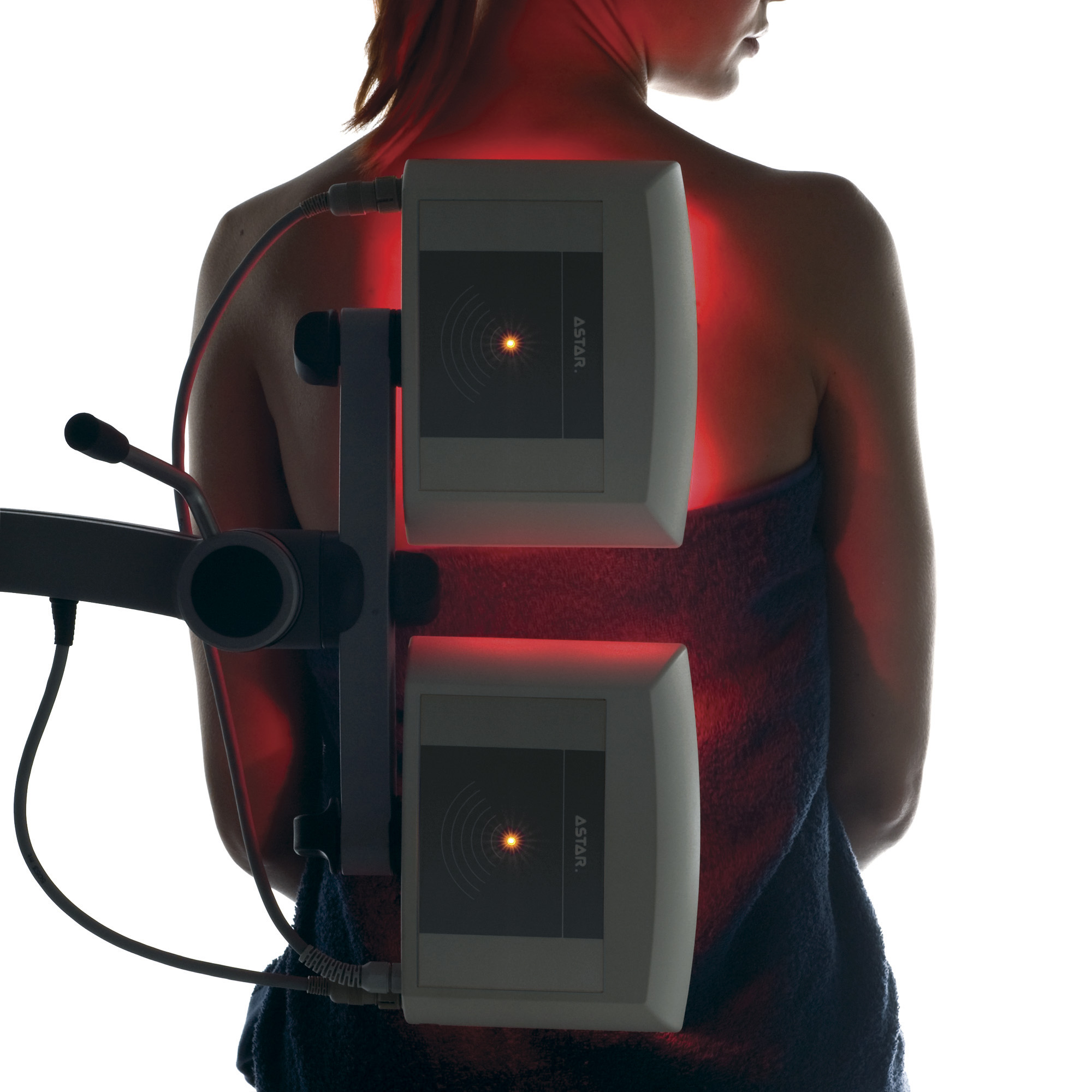

CL 1800 R 5 x 40 mW and IP 4 x 400 mW shower applicator with handle
Shower applicator stand
Straight optical fiber Ø 6 mm
45° angled fiber optic cable Ø 6 mm
45° angled optical fiber Ø 6 mm tapered for laser puncture
Protective glasses for laser therapy

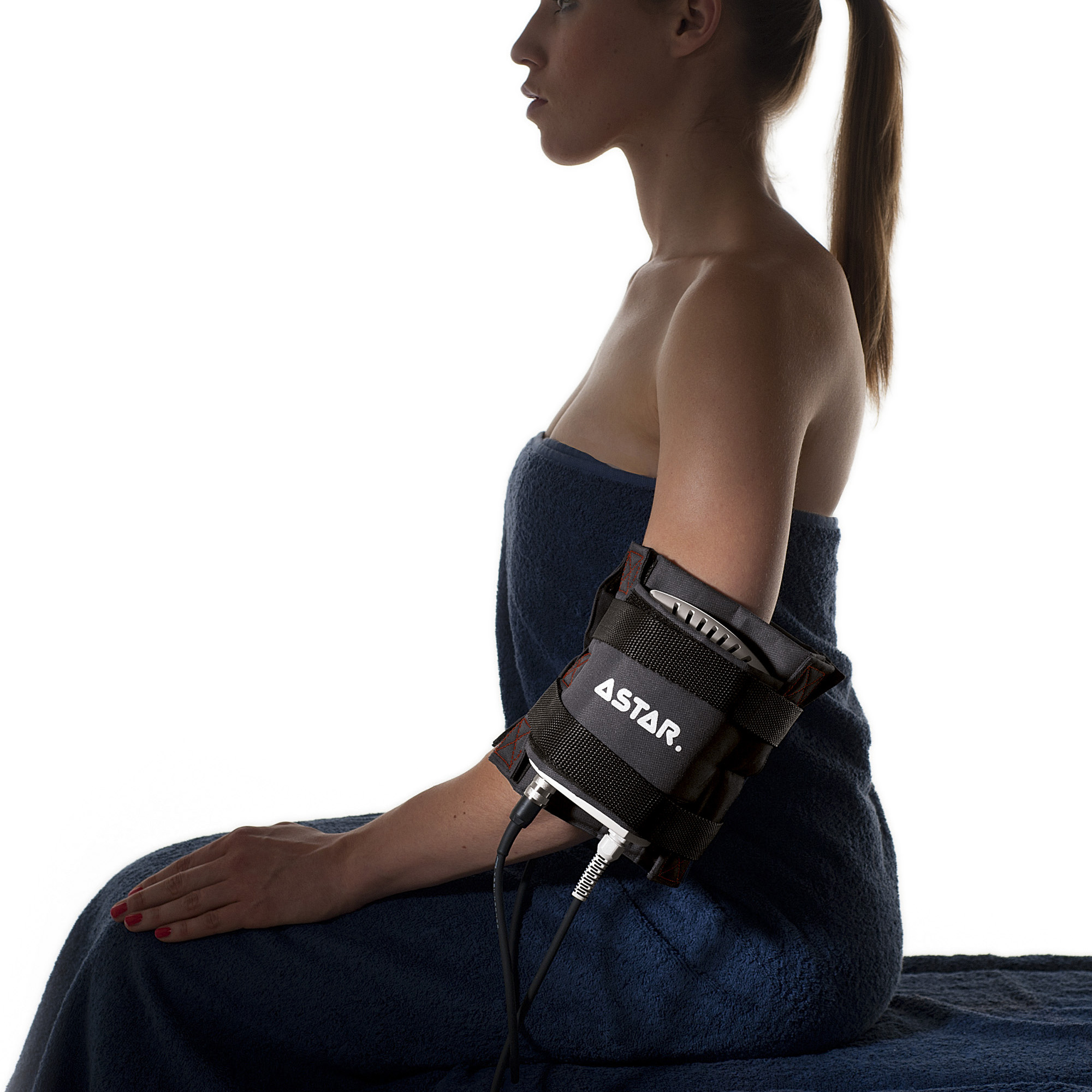

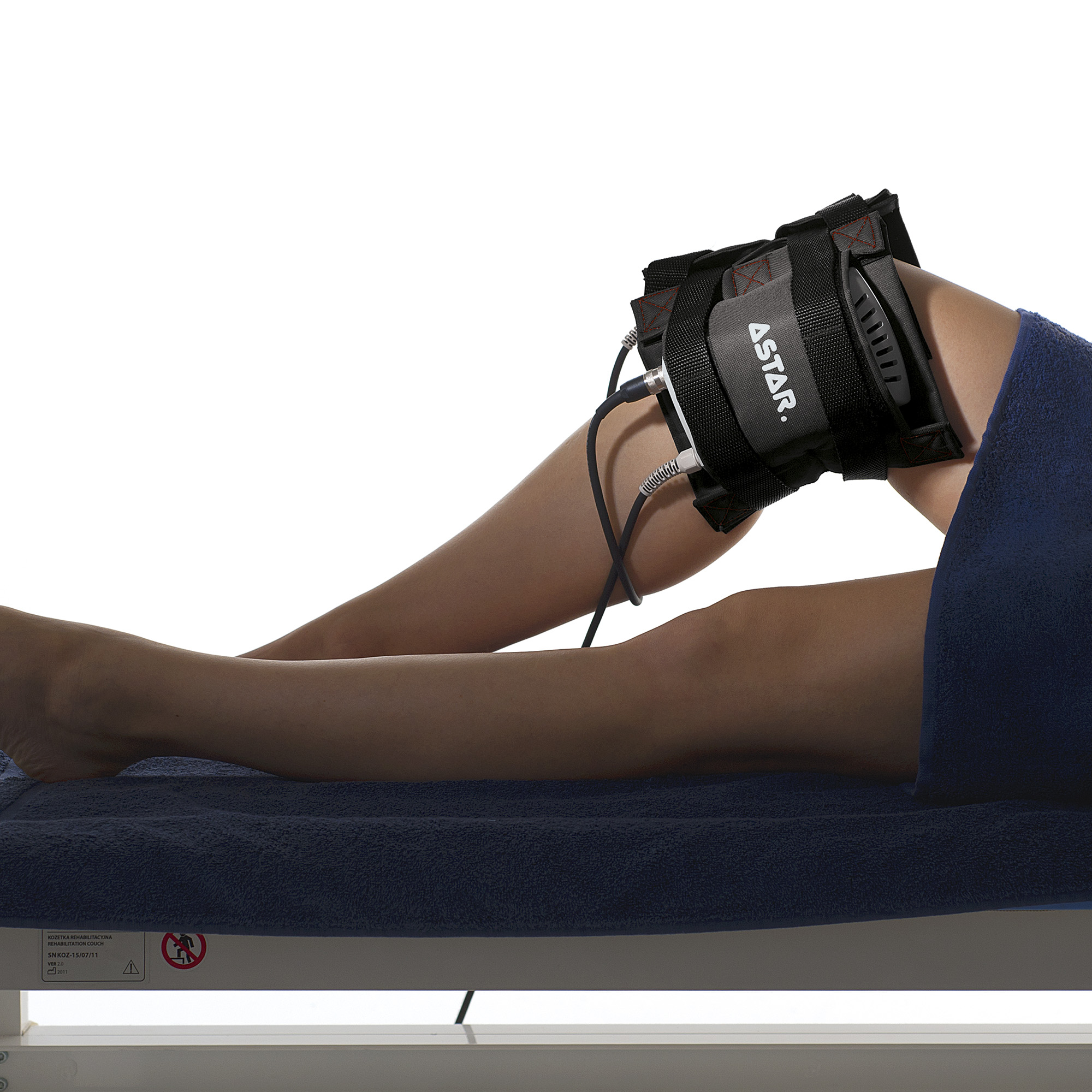

CPE1 and CPE2 magnetic field flat applicators with covers
Permanent magnet
PRO bag
Versa / Versa X table

Electrotherapy - indications

Chronic or acute spinal pain conditions
Various types of discopathy
Nervous
Osteoarthritis
Rheumatic diseases
Muscular dystrophies
Conditions after injuries to the musculoskeletal system, such as fractures, contusions, and sprains
Soft tissue inflammation
Rwa kulszowa
Headaches, including migraine headaches
